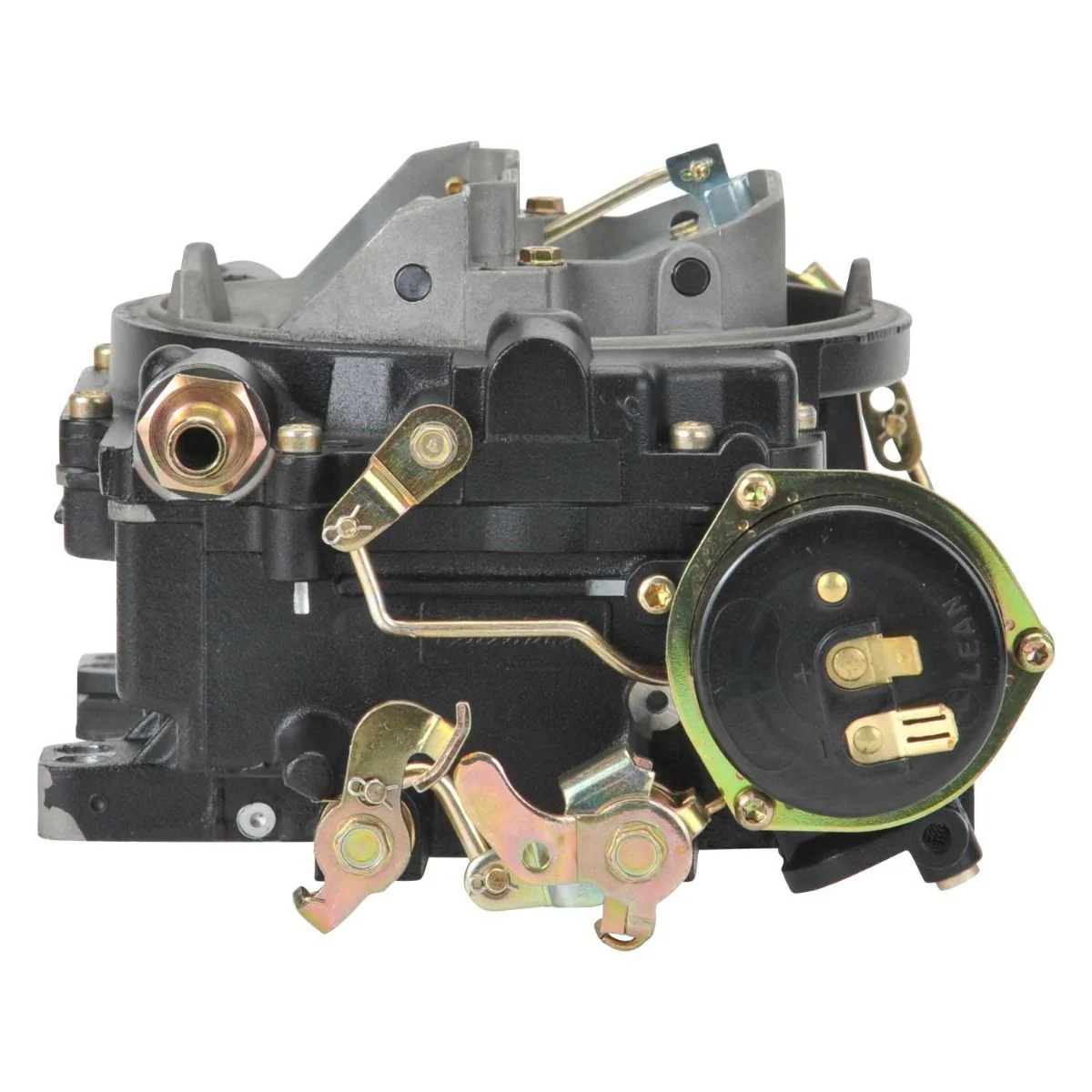

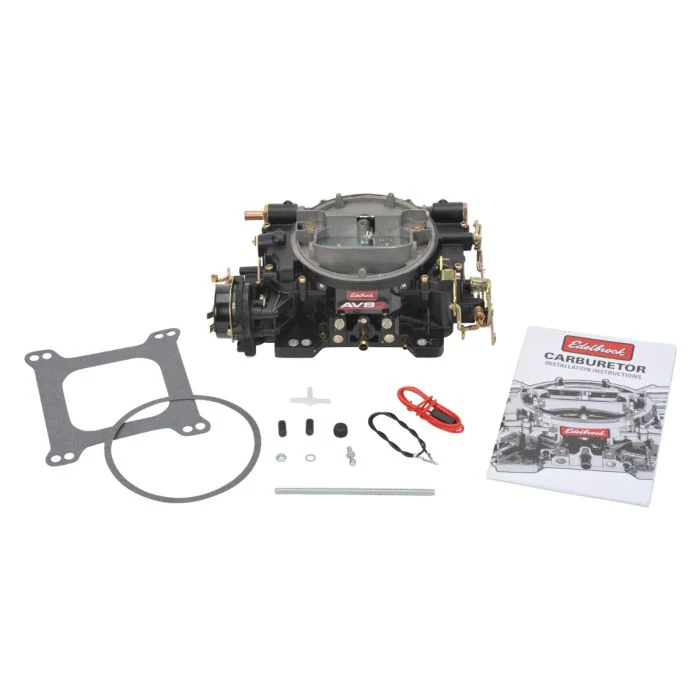

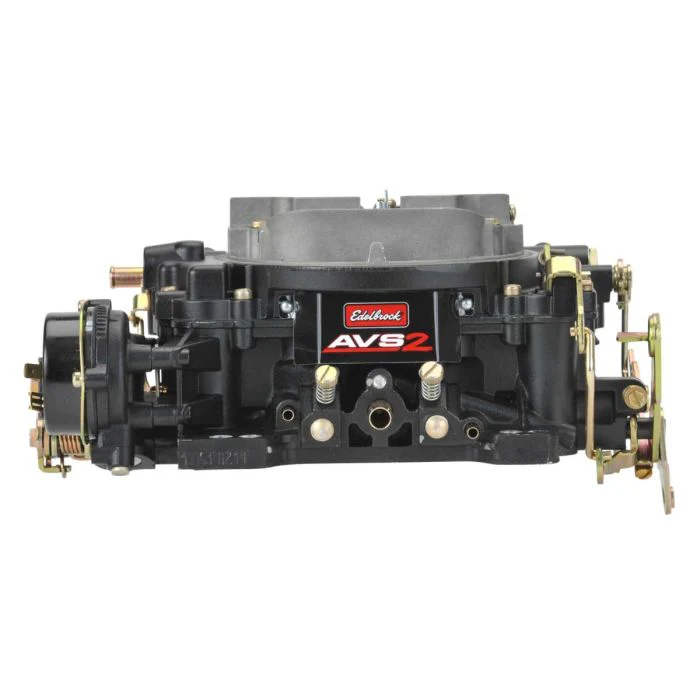

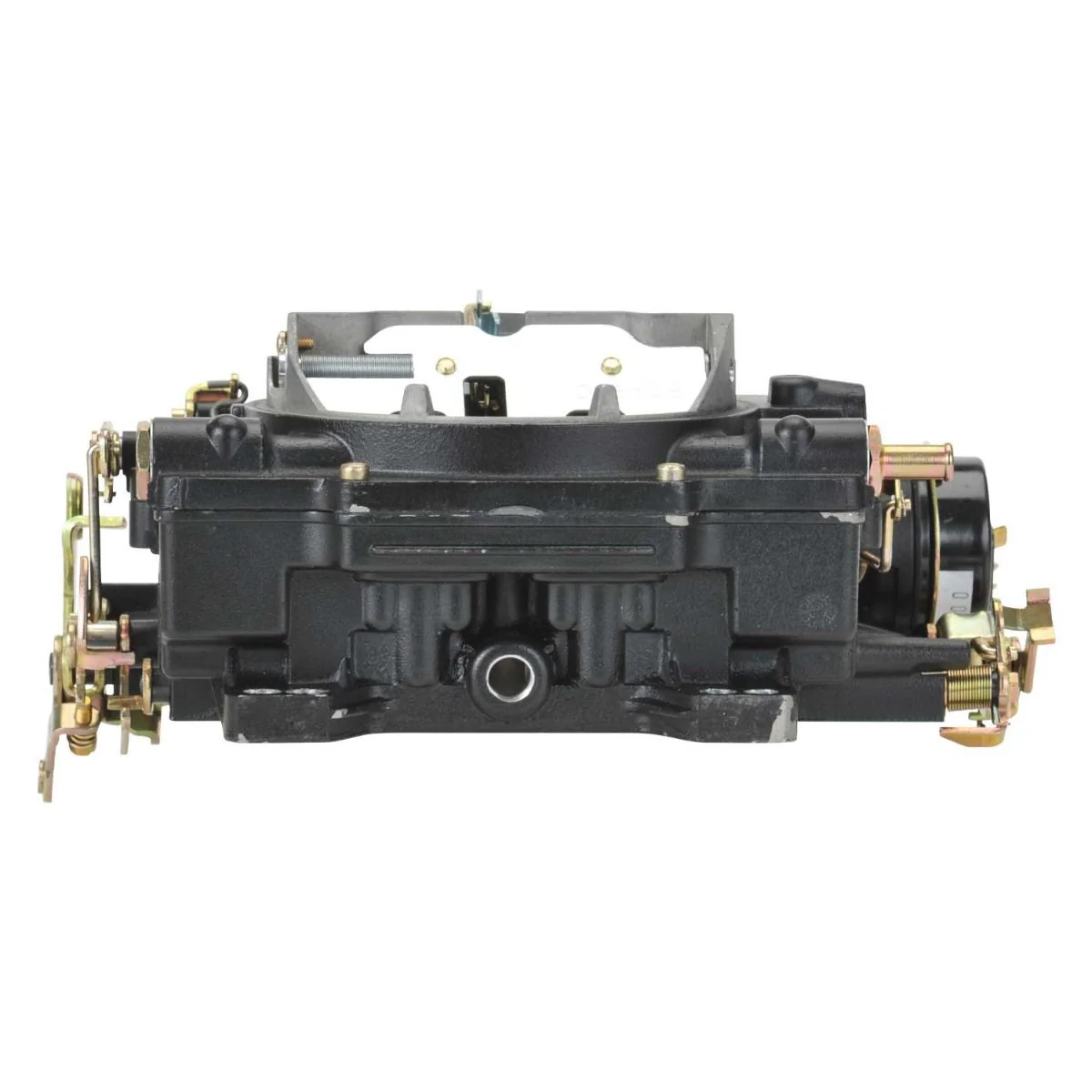

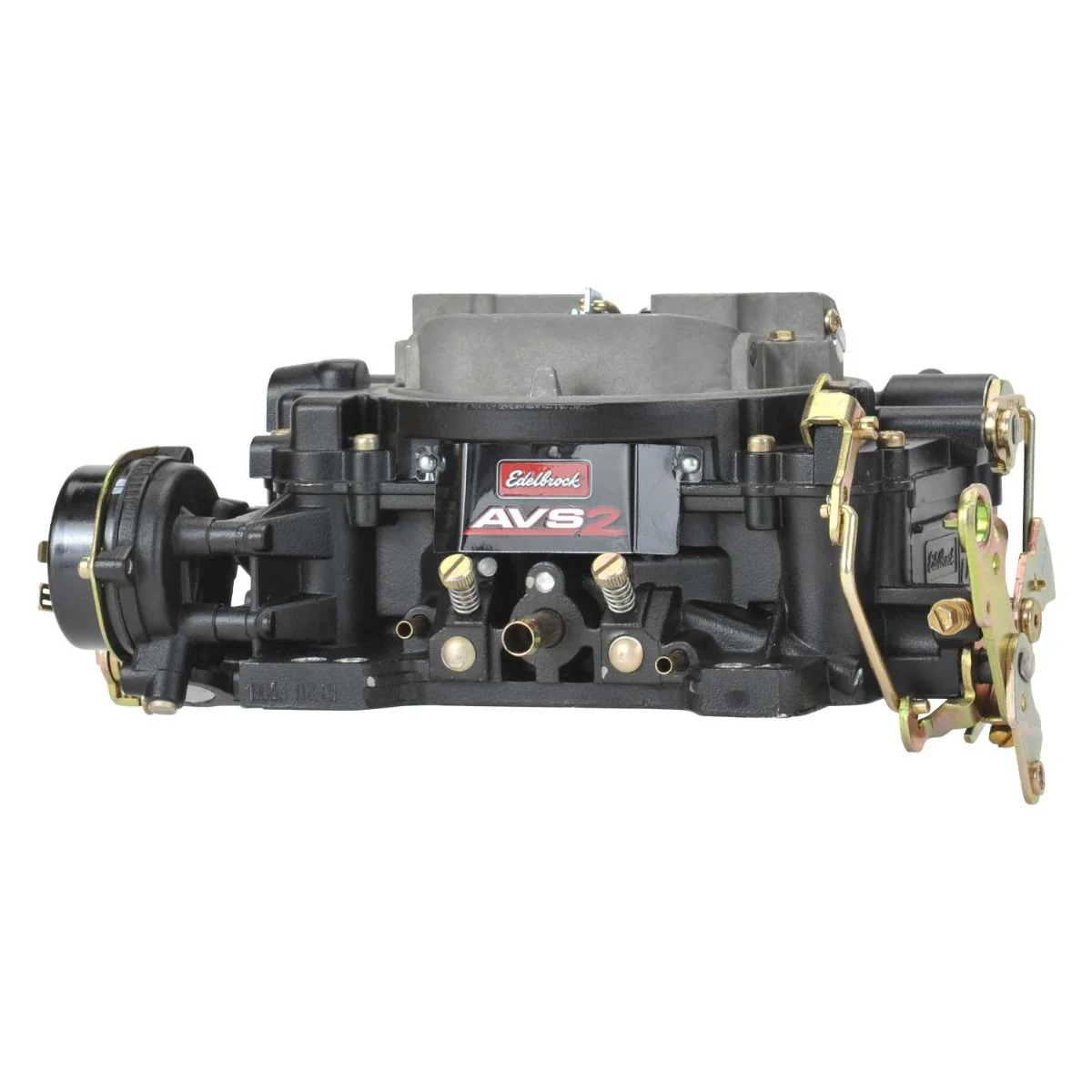

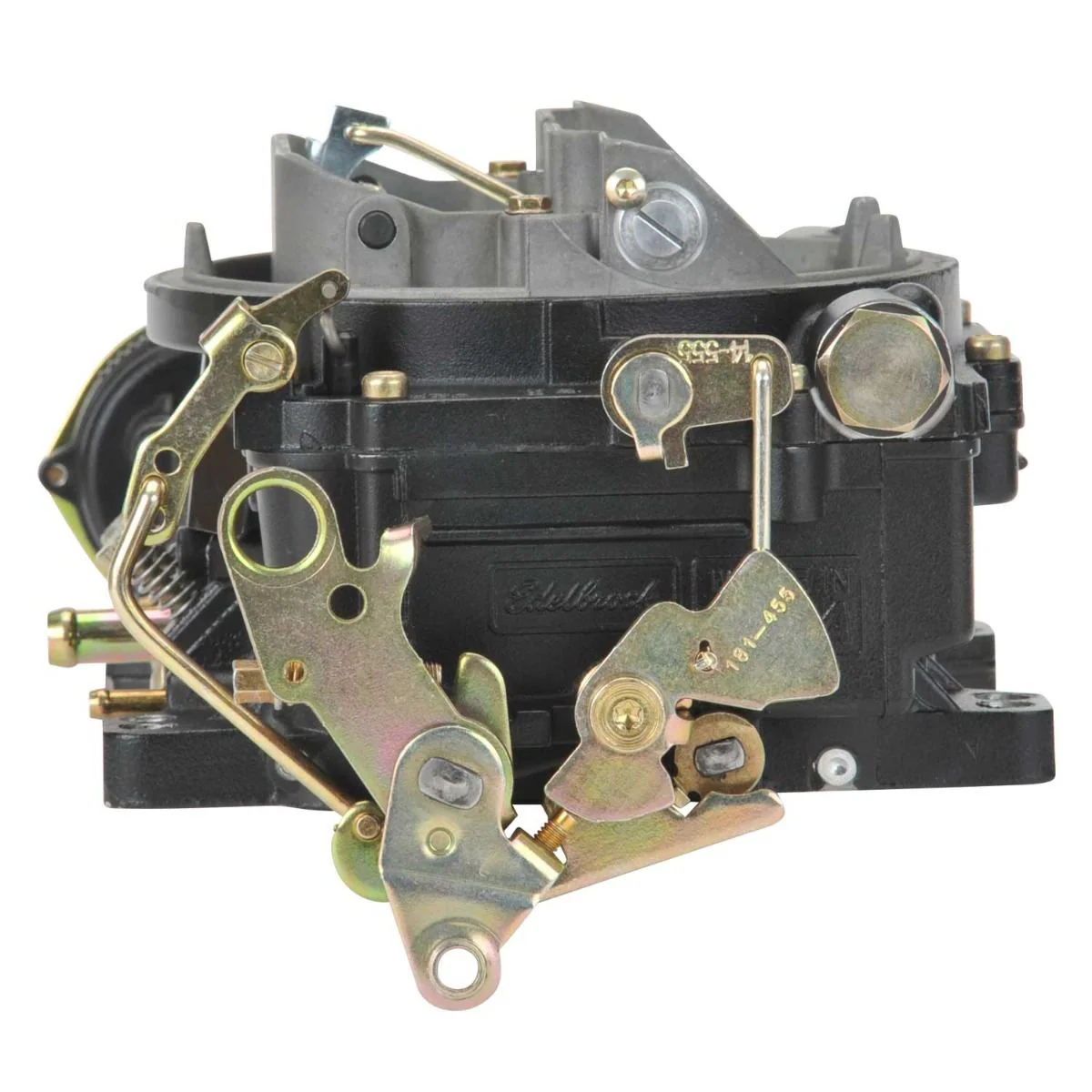

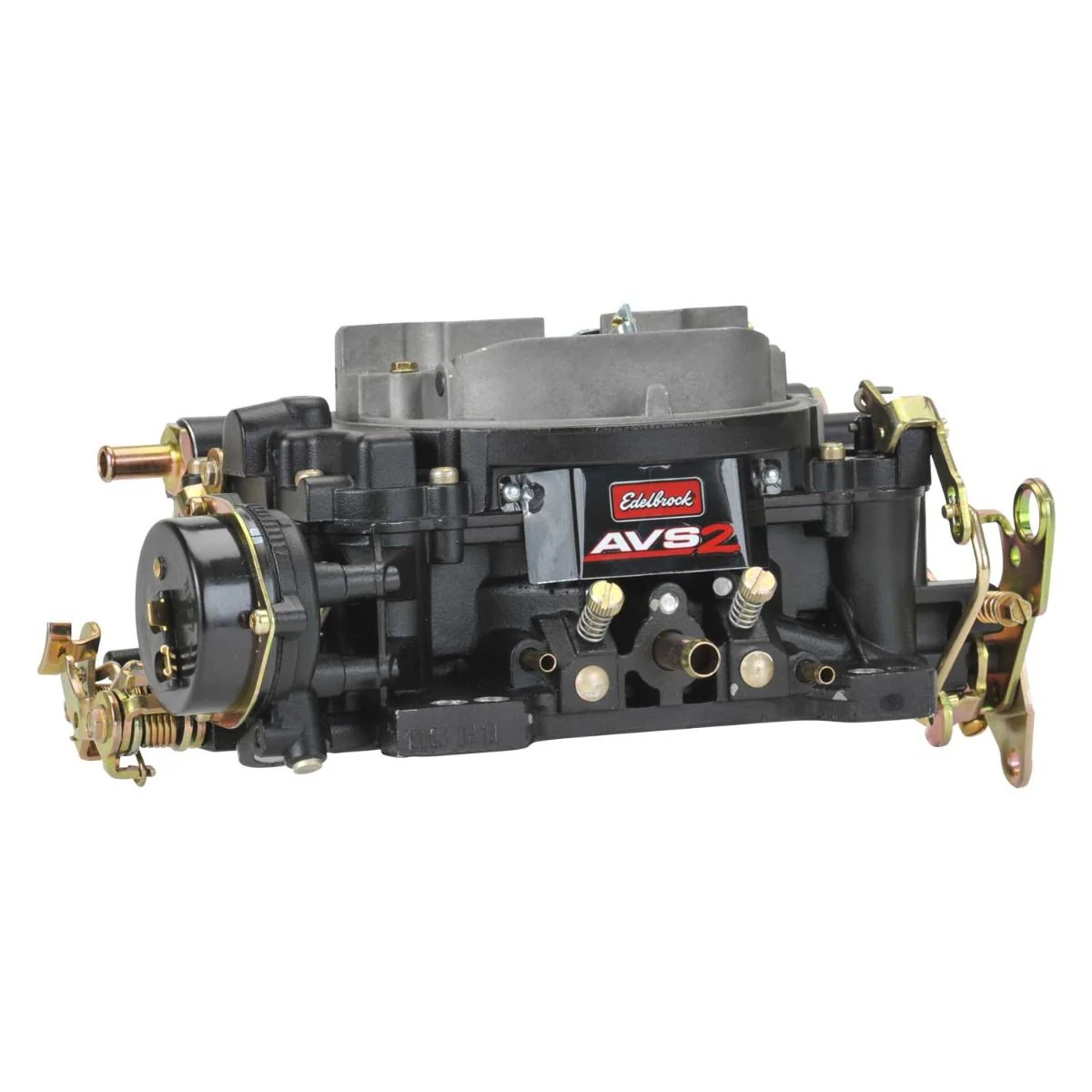

Edelbrock AVS2 Carburetor 19063 (650 CFM, Electric Choke, Black Powder Coated) Non-EGR
Specs
- Condition: New
- Metering Rod Size: .070 x .037 in
- Gasket Or Seal Included: Yes
- Barrel Quantity: 4 Barrel
- Flange Type: Square
- Secondary Jet Diameter: 0.098
- Main Venturi Diameter: 1.19
- Body Height: 3.25
- Bore Diameter: Primary Bore 1.44; Secondary Bore 1.75
- Spring Force: 5" Hg (Orange)
- Availability Note: Available to Order
- Warranty: 12 Months
- Choke Type: Electric
- Finish: Black Powder Coated
- Material: Aluminum
- CFM Rating: 650 cfm
- Primary Jet Diameter: 0.101
-
Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000; Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.; The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor. You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds.
Description and Information
The Edelbrock AVS2 Series #19063 is a black-finished carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #19063 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets; .070 x .037 metering rods; orange (5" Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a satin-finished AVS2 with electric choke, order part #1906.
Original: $531.95
-65%$531.95
$186.18
