Radium Engineering Fuel Rails Plumbing Audi R8 Lamborghini Huracan/ Audi R8 - 20-0866-PK

Radium Engineering Fuel Rails Plumbing Audi R8 Lamborghini Huracan/ Audi R8 - 20-0866-PK

Fitment Information

  • Audi R8 Gen2 Type4S
  • Lamborghini Huracan LP580-2
  • Lamborghini Huracan LP610-4
  • Lamborghini Huracan LP640-4
  • Lamborghini Huracan EVO
  • Lamborghini Huracan STO
  • Lamborghini Huracan Tecnica

Specifications

  • PORTS AND FITTINGS

    The fuel rail ports are tapped for 8AN ORB.

    • 8AN ORB Adapter Fitting
    • 8AN ORB Direct Mount Regulators
    • 8AN ORB Fuel Pulse Dampers
    • Fuel Pressure Gauge Adapters

What Include's

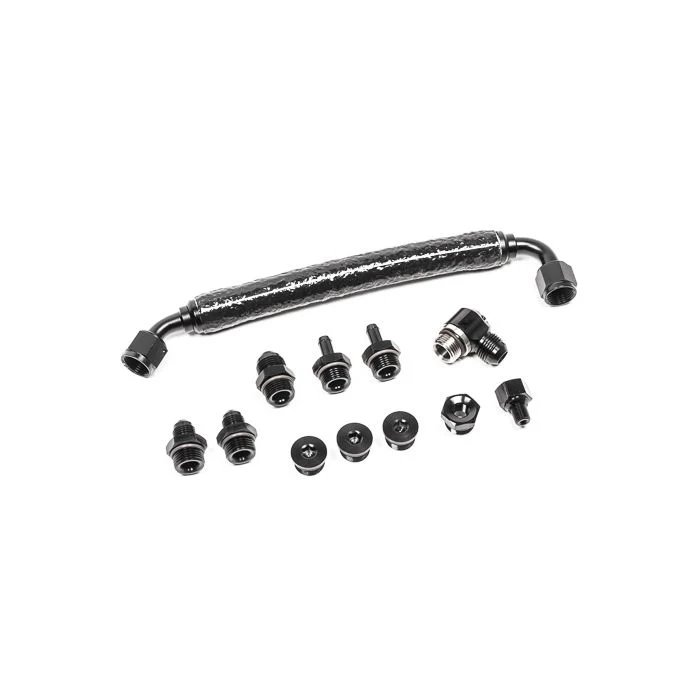

  • The plumbing kit includes adapter fittings and plugs permitting a bolt-on affair with the OEM fuel lines. Large 8AN crossover hose is provided for the front ports (near the firewall). Adapter fittings are provided for reusing the OEM pressure sensor.

Product Description

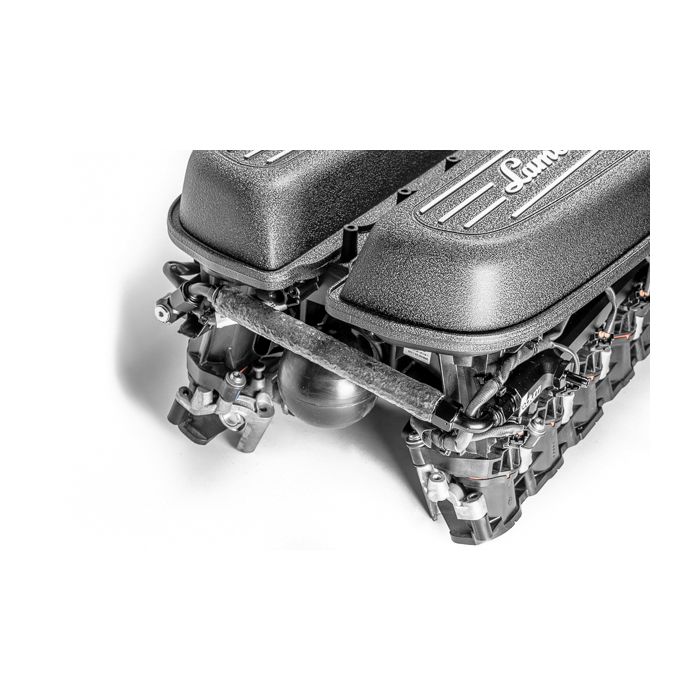

The plumbing kit allows a direct plug and play hookup of the Radium 20-0866 Fuel Rails (not included) to the OEM fuel system. The barbed fittings shown in the picture above and below mimic the OEM fuel rails. With these installed, the OEM rubber hoses that come from the RH and LH high pressure fuel pumps can be reconnected. However, an extra set of 8AN ORB to 6AN male fittings are provided for connect aftermaket fuel lines, if necessary. For maximum flow. a large insulated 8AN crossover hose is provided.

Also, adapter fittings are provided that permit the OEM Bosch sensor to be reused (shown on right side).

$189.95
Radium Engineering Fuel Rails Plumbing Audi R8 Lamborghini Huracan/ Audi R8 - 20-0866-PK—
$189.95
Product image 1
Product image 2

Description

Fitment Information

  • Audi R8 Gen2 Type4S
  • Lamborghini Huracan LP580-2
  • Lamborghini Huracan LP610-4
  • Lamborghini Huracan LP640-4
  • Lamborghini Huracan EVO
  • Lamborghini Huracan STO
  • Lamborghini Huracan Tecnica

Specifications

  • PORTS AND FITTINGS

    The fuel rail ports are tapped for 8AN ORB.

    • 8AN ORB Adapter Fitting
    • 8AN ORB Direct Mount Regulators
    • 8AN ORB Fuel Pulse Dampers
    • Fuel Pressure Gauge Adapters

What Include's

  • The plumbing kit includes adapter fittings and plugs permitting a bolt-on affair with the OEM fuel lines. Large 8AN crossover hose is provided for the front ports (near the firewall). Adapter fittings are provided for reusing the OEM pressure sensor.

Product Description

The plumbing kit allows a direct plug and play hookup of the Radium 20-0866 Fuel Rails (not included) to the OEM fuel system. The barbed fittings shown in the picture above and below mimic the OEM fuel rails. With these installed, the OEM rubber hoses that come from the RH and LH high pressure fuel pumps can be reconnected. However, an extra set of 8AN ORB to 6AN male fittings are provided for connect aftermaket fuel lines, if necessary. For maximum flow. a large insulated 8AN crossover hose is provided.

Also, adapter fittings are provided that permit the OEM Bosch sensor to be reused (shown on right side).
